MiniMicro

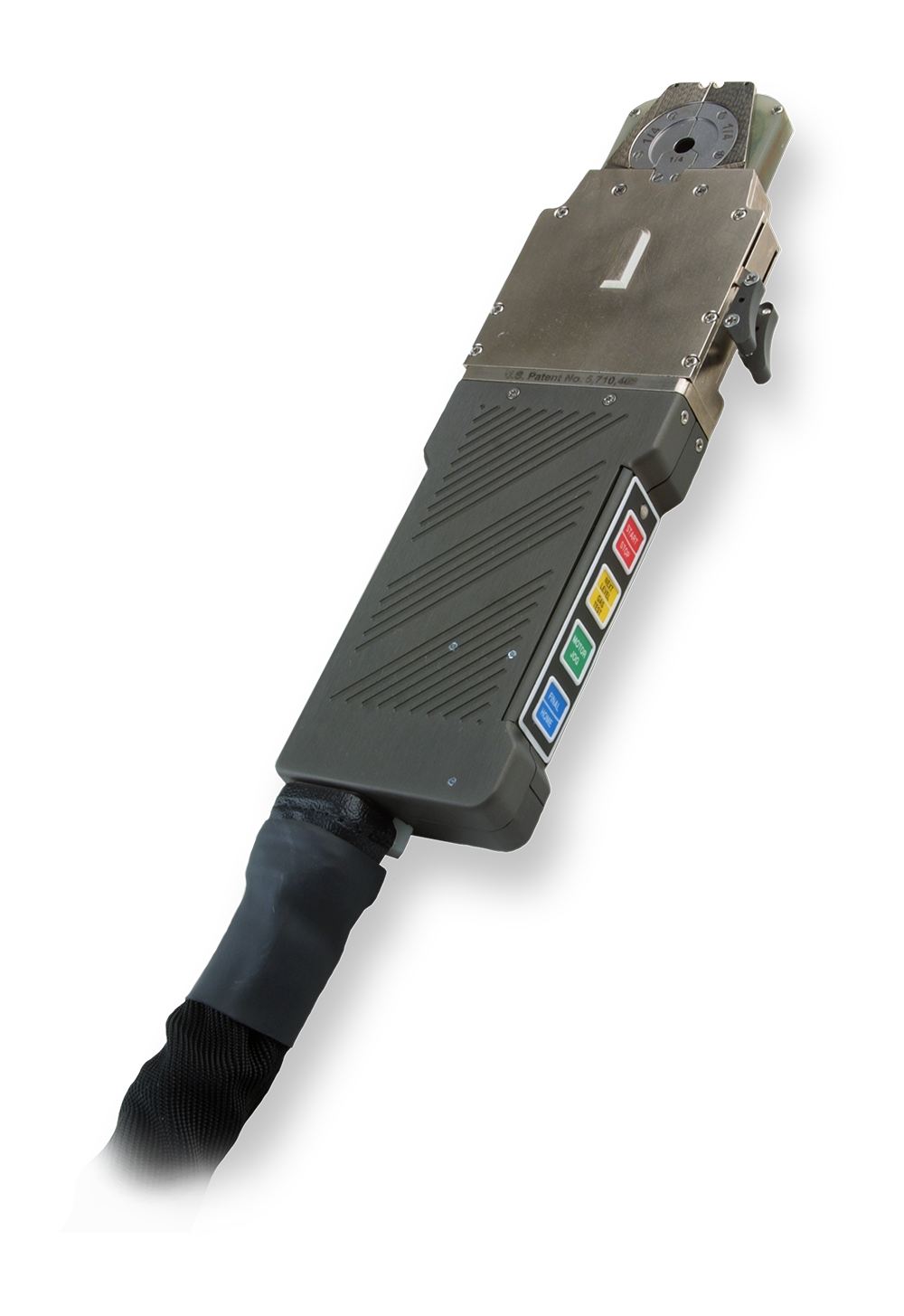

MiniMicro™ Weldhead

Model: 4000 MiniMicro (1/8” ~ 1/2” O.D.) Cooling Requirements: Yes

Price: Call for Quote MiniMicro Weldhead

Description

The MiniMicro™ weldhead was designed for precision welding of small diameter tubes and fittings. It is controlled by an orbital power-supply motor-control circuit to turn the rotor at the precise speed to create a near perfect weld.

How to Buy

Features and Accessories

Uses a 24VDC motor with TACH feedback
Capable of welding 1/8” to 1/2 inch OD tubes and associated fittings.
Twist-lock cable-end connectors.
Note: MiniMicro™ requires the CobraCooler

Comes equipped with an integrated 12 foot cable, which can connect (with the CobraCooler™ installed) to either the CobraTig® 150 or the Advanced Color Logic™ (ACL) orbital power-supply.

Accessories

Popular Accessories:
Bench Mount Kit for 4000~5003 Weldheads (P/N 005-0634)
25 ft (7.6m) Extension Cable (P/N 005-0635)

Connecting to the CobraTig® 150
Connects directly to the CobraTig® 150 orbital power-supply with a CobraCooler™ installed with its integrated 12 foot cable.
Connecting to the ACL
Connects directly to the ACL orbital power-supply with a Pig Tail Kit (P/N 005-0619) and a CobraCooler.
