Prince XL MIG Welding Gun

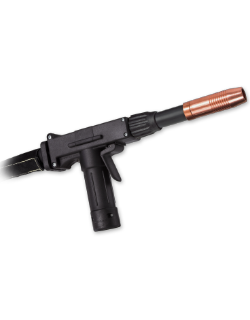

Prince® XL- Push-Pull Pistol Grip Gun


  • Models:             Air Cooled and Water Cooled (P/Ns below)
  • Models:             Compatible: MK, Lincoln, Miller and Fronius (P/Ns below)
  • Lengths:           15 ft, 25 ft, 35 ft and 50 ft lengths

Price: Prince XL - Air Cooled - Standard 25 ft

Description

The Prince XL brings together every aspect of precision and dependability. High heat and heavy duty applications will benefit from the Water Cooled and lightweight pistol grip design.

Compatibility:

Direct plug-in connectors available for Lincoln, Miller and Fronius wire feeders. Water and Air Cooled models: 15 ft, 25 ft, 35 ft and 50 ft lengths. (P/Ns below)

FEATURES

  • Ingenious 3¾ turn pot easily adjustable and hidden in the base of the handle for added protection
  • EZ-Lock® barrel can easily rotate 360˚ to provide the perfect angle for all jobs when using curved barrels.
  • Patented Water Cooling right to the end of the gas cup
  • Available with straight or curved barrels in 6”, 12” and 18”
  • Wire feed speed 800 IPM

  • Wire Type and Diameter:
    Solid and Hard wire .030” - .045” (0.8 mm - 1.1 mm)
    Aluminum and Cored wire: .030” - 1/16” (0.8 mm - 1.6 mm)
  • Snake Skin (Standard)
    931-0110 15ft, 931-0122 25ft, 931-0132 35ft, 931-0123 50ft
Duty Cycle 100%
Rated Output
Rated Output

Rated Output determined by the gun having an Air Cooled (A/C) or Water Cooled (W/C) barrel.

Prince XL A/C is 225 Amps
Prince XL W/C is 400 Amps

Options / Compatibility

  • Optional Ultra Flex power cable offers more durability and less strain when welding. (Part Numbers below)
  • Air Cooled models can use the Flex Barrel for hard to reach welds
  • Capable of Aluminum Welding as well as Hard Wire Welding (Steel, stainless steel and flux core steel wires)

  • Plug-in direct compatibility with MK, Lincoln, Miller, Fronius and Euro systems. (Part Numbers below)
  • Available in both Water Cooled and Air Cooled models
  • Available in Lengths: 15 ft, 25 ft, 35 ft and 50 ft

Part Numbers - MK and Compatible Guns

Compatible guns used with Lincoln Power Feed 25M (model K2536-4) require a kit for adaptability. Call factory for details.

Part Numbers
MK
Part Numbers
Lincoln 7 Pin
Part Numbers
Miller 10 Pin
Part Numbers
Fronius 9 Pin
15ft AC:   317-715
25ft AC:   317-725
35ft AC:   317-735
50ft AC:   317-750

15ft WC:   318-715
25ft WC:   318-725
35ft WC:   318-735
50ft WC:   318-750
310-715
310-725
310-735
310-750

311-715
311-725
311-735
311-750
332-715
332-725
332-735
332-750

333-715
333-725
333-735
333-750
330-715
330-725
330-735
330-750

331-715
331-725
331-735
331-750

Owners Manuals - MK and Compatible Guns

MANUAL MK Compatible MANUAL Lincoln 7 Pin MANUAL Miller 10 Pin MANUAL Fronius 9 Pin

Consumables

Barrel Liners: Aluminum

Teflon
Heavy Duty Teflon
Flex Barrels
For P/Ns Read More

Barrel Liners: Hard Wire Spiral Steel Liner
615-0343
615-0258
615-0259
615-0338 (Python only)

Hard Wire - Flex Barrel Spiral Steel Liner
(Python, Python LX)
615-0261-12, 615-0261-18
615-0261-24, 615-0261-36

Read More

Drive Rolls

Additional Enhancements For Aluminum Capabilities

Drive Roll Kits:

  • Knurled (Standard)
  • Insulated Grooved (Option)
  • Insulated Knurled (Option)

  • Drive roll installation / removal tool (931-0100)

For P/Ns Read More

Contact Tips for Hard Wire

Steel, Stainless and
Flux Core Steel wire


3/8” Contact Tips
Python LX XL MAX MXmax

.030”(0.8 mm) 621-0396-25
.035”(0.9 mm) 621-0397-25
.045”(1.1 mm) 621-0398-25

Read More

Cups and Tips Connectivity - Extend Your Reach and Save Barrel Tip Threads

Not only can tip extenders extend the reach of your gun, but they also protect the threaded end of your barrel from damage. Some extenders are stackable and some are not – see below to determine. View Connectivity Guide for Water Cooled configuration.

Barrel Tip Extender Contact Tip Gas Cup
Barrels
Barrels
Python/LX/Prince XL
AC & A/W
Tip Extenders
P/N 621-0424
NON stackable
Contact Tips
3/8 inch diameter

Gas Cups

Finned Copper A/C

Gun Lead Assembly Components - MK AND COMPATIBLE GUNS

U.S. Customary Units / Metric: 15 ft/4.6m, 25 ft/7.6m, 35 ft/10.7m, 50 ft/15.2m

MK Lincoln Miller Fronius
MK Classic Connections to wire feeder
Lincoln 7 Pin Compatibiliity used with Lincoln wire feeder
Miller 14 Pin Compatibiliity used with Miller wire feeder
Fronius 9 Pin Compatibiliity used with Fronius wire feeder

Hoses

MK Lincoln Miller Fronius

Gas Hose

552-0242-15
552-0242-25
552-0242-35
552-0242-50

Water Hose MK

552-0243-15
552-0243-25
552-0243-35
552-0243-50

---

---

Gas Hose

552-0241-15
552-0241-25
552-0241-35
552-0241-50

Water Hose Blue

552-0239-15
552-0239-25
552-0239-35
552-0239-50

Water Hose Red

552-0209 all lengths

Gas Hose

552-0241-15
552-0241-25
552-0241-35
552-0241-50

Water Hose Blue

552-0239-15
552-0239-25
552-0239-35
552-0239-50

Water Hose Red

552-0209 all lengths

Gas Hose

552-0241-15
552-0241-25
552-0241-35
552-0241-50

Water Hose Blue

552-0238-15
552-0238-25
552-0238-35
552-0238-50

Water Hose Red

552-0211 all lengths

Cables

MK Lincoln Miller Fronius

Control Cable

005-0268
005-0269
005-0307
005-0272

Power Cable (AC)

843-0487
843-0484
843-0488
843-0485

Power Cable (WC)

005-0387-15
005-0387-25
005-0387-35
005-0387-50

Power Cable
Ultra Flex (AC only)

843-0707-15
843-0707-25
843-0707-35
843-0707-50

Control Cable

005-0268
005-0269
005-0307
005-0272

Power Cable (AC)

843-0619
843-0620
843-0622
843-0621

Power Cable (WC)

005-0388-15
005-0388-25
005-0388-35
005-0388-50

Power Cable
Ultra Flex (AC only)

843-0687-15
843-0687-25
843-0687-35
843-0681-50

Control Cable

005-0405-15
005-0405-25
005-0405-35
005-0405-50

Power Cable (AC)

843-0619
843-0620
843-0622
843-0621

Power Cable (WC)

005-0388-15
005-0388-25
005-0388-35
005-0388-50

Power Cable
Ultra Flex (AC only)

843-0687-15
843-0687-25
843-0687-35
843-0681-50

Control Cable

005-0406-15
005-0406-25
005-0406-35
005-0406-50

Power Cable (AC)

843-0619
843-0620
843-0622
843-0621

Power Cable (WC)

005-0388-15
005-0388-25
005-0388-35
005-0388-50

Power Cable
Ultra Flex (AC only)

843-0687-15
843-0687-25
843-0687-35
843-0681-50

Conduits

MK Lincoln Miller Fronius

Aluminum Welding Only
- Conduit

615-0601-15
615-0601-25
615-0601-35
615-0601-50

Hard Wire Welding Only
Flat Spiral Steel - Conduit

615-0208
615-0216
615-0219
615-0218

Aluminum Welding Only
- Conduit

615-0620-15
615-0620-25
615-0620-35
615-0620-50

Hard Wire Welding Only
Flat Spiral Steel - Conduit

615-0621-15
615-0621-25
615-0621-35
615-0621-50

Aluminum Welding Only
- Conduit

615-0620-15
615-0620-25
615-0620-35
615-0620-50

Hard Wire Welding Only
Flat Spiral Steel - Conduit

615-0621-15
615-0621-25
615-0621-35
615-0621-50

Aluminum Welding Only
- Conduit

615-0620-15
615-0620-25
615-0620-35
615-0620-50

Hard Wire Welding Only
Flat Spiral Steel - Conduit

615-0621-15
615-0621-25
615-0621-35
615-0621-50

Water Cooled Connections - Interchangeable Fittings for Compatible Guns

Fittings: For Water Cooled Connections: MK compatible guns have interchangeable fittings, so you can match as needed for your cooler.

Hose Retainer: Both fittings require a hose retainer. Call factory for pricing.

Retainer Part Number Fitting Part Number Fitting Part Number
Hose Retainer 431-1898 431-1898
5/16” Hose Retainer
Quick Connect Fitting 431-1910 431-1910
Quick Connect
Fitting
753-3379 Fitting with Nipple 431-1893 431-1893* Nipple
753-3379* Left-Hand
Threaded Fitting
*Must be ordered together
Both Fittings with Retainer Both fittings shown with a hose retainer Cobra Coolant For Water Cooled Guns.

For best performance use only Cobra Coolant.

Cobra® Coolant

Failure to use Cobra Coolant will void warranty.

Cobra Coolant

931-0060: 1 Gal (3.78 L)
931-0060-4: 1 Case-qty 4
931-0060-5GAL: 18.92L
